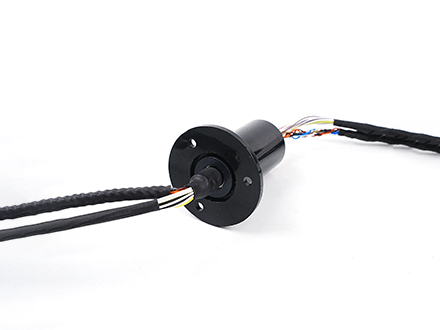

A capsule slip ring is a compact electromechanical device designed to transmit power,electrical signals,and data between a stationary part and a continuously rotating part of a system.It plays a critical role in modern automation,robotics,surveillance systems,and precision equipment where uninterrupted rotation is required without twisting or damaging wires.
Because of its small cylindrical structure,the capsule slip ring is widely used in applications where space is limited but reliable electrical connectivity is essential.
A capsule slip ring operates through a simple but highly effective principle:rotating conductive rings and stationary brushes maintain continuous electrical contact.
Inside the device:
The rotating shaft is connected to conductive rings
Stationary brushes stay in contact with these rings
Electrical signals pass through the contact interface
The system can rotate endlessly without cable twisting
This design allows stable transmission of both power and data signals,even during high-speed or continuous rotation.
In industrial terms,a capsule slip ring is a type of rotating electrical connector that ensures mechanical freedom while maintaining electrical continuity.
The name comes from its physical structure:
Compact cylindrical“capsule”housing
Fully enclosed internal design
Lightweight and space-saving format
Easy integration into small rotating systems
Compared to traditional slip ring assemblies,a capsule design is optimized for miniaturization and lightweight applications.
This is why engineers often choose a compact slip ring solution when designing modern electronic systems.
Different industries require different configurations.The most common types include:
A general-purpose model used for basic power and signal transmission in rotating systems.
A mini capsule slip ring is designed for ultra-small devices such as cameras,sensors,and compact robotics.It offers reliable performance in tight installation spaces.
A micro slip ring is even smaller,often used in precision instruments where space is extremely limited,such as medical or scientific devices.
A compact slip ring balances size and performance,making it suitable for industrial equipment and automation systems requiring multiple channels.
A Rotary Slip Ring capsule emphasizes continuous rotation capability in enclosed systems like surveillance cameras and gimbals.
Capsule slip rings are widely used because of their strong technical advantages:
Their small size makes them suitable for modern miniaturized devices.
They can transmit multiple signals at the same time,including:
Power
Analog signals
Digital data
Control signals
They ensure low electrical noise and consistent signal transmission during rotation.
High-quality materials reduce wear and extend operational lifespan.
Their plug-and-play structure simplifies system integration.
The internal mechanism of a capsule slip ring is based on precision engineering:
The rotating component turns with the system
Conductive rings rotate with the shaft
Carbon or precious metal brushes remain stationary
Electrical contact is maintained through sliding interfaces
Signals are transmitted without interruption
This allows systems to rotate freely without cable entanglement or signal loss.
The capsule slip ring is used in a wide range of industries due to its flexibility and reliability.
One of the most common applications is in PTZ(Pan-Tilt-Zoom)cameras,where continuous 360°rotation is required.
Used in robotic arms and automated machines that require rotational movement with stable signal transmission.
A Miniature Slip Ring or micro version is often integrated into drone gimbals for smooth camera rotation.
Used in rotary tables,packaging machines,and manufacturing systems.
Applied in imaging systems and diagnostic machines that require precise rotational motion.
Used in rotating displays,stage lighting,and simulation equipment.
It is used to transmit electrical power and signals between rotating and stationary parts in compact systems.
A miniature slip ring is a smaller category of capsule slip ring designed for extremely limited installation spaces.
Yes,many models support analog,digital,and high-speed data transmission.
They are widely used in CCTV cameras,robotics,drones,industrial automation,and medical devices.
Depending on quality and usage conditions,it can last for millions of rotations under proper operation.
