Selecting the right capsule slip ring is a critical step in designing any system that requires continuous rotation while transmitting power,signals,or data.Whether you are working on robotics,CCTV systems,drones,or industrial automation,the correct choice directly affects performance,reliability,and service life.
A mismatch in specifications can lead to signal loss,overheating,or premature wear.That’s why engineers carefully evaluate multiple parameters before selecting a capsule slip ring solution.
This guide explains how to choose the right model based on technical requirements,application scenarios,and design constraints.
Before selecting a product,it is important to understand the function of a capsule slip ring.

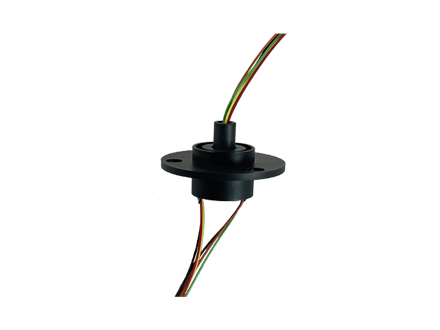

A capsule slip ring is a compact rotating electrical interface that allows:
Continuous rotation between stationary and moving parts
Transmission of power and electrical signals
Stable data communication during motion
Inside the structure,conductive rings and brushes maintain electrical contact while rotating.
Compared with larger slip ring assemblies,Capsule Slip Rings are designed for compact systems where space is limited but performance must remain stable.
The first step in choosing the right slip ring is understanding your application.
Different systems require different configurations:
CCTV cameras require stable signal transmission
Robotics require multi-channel control signals
Drones require lightweight and compact designs
Industrial machines require durability and higher current capacity
If your application has limited installation space,a mini capsule slip ring or compact slip ring is often more suitable.
One of the most important factors is the number of electrical channels required.
A capsule slip ring can transmit multiple circuits simultaneously,such as:
Power lines
Control signals
Sensor data
Communication signals
If your system is small and simple,a small slip ring with fewer channels may be enough.For more complex systems,a higher-channel configuration is required.
Capsule slip rings come in different size categories depending on application constraints.
A mini capsule slip ring is designed for very compact devices like PTZ cameras,drones,and small robotic systems.
A micro slip ring is even smaller and used in precision instruments,medical devices,and micro-electromechanical systems.
A compact slip ring balances size and performance,making it suitable for industrial automation and multi-channel systems.
A Rotary Slip Ring capsule is commonly used in systems requiring stable continuous rotation,such as surveillance and motion control equipment.
Electrical capacity is a key factor in slip ring selection.
You must confirm:
Maximum voltage per circuit
Maximum current load
Power requirements of the system
If the load exceeds the rated capacity,the slip ring may overheat or fail prematurely.Always choose a capsule slip ring that supports a safety margin above your actual operating load.
Modern systems often require more than just power transmission.
A good capsule slip ring should support:
Analog signals
Digital signals
High-speed communication
Video transmission(in some models)
If your system includes cameras or data sensors,signal integrity becomes extremely important.In such cases,selecting a high-quality capsule slip rings design with low electrical noise is essential.
Every slip ring has a maximum operating speed.
Before choosing a product,check:
Continuous rotation speed
Peak rotation speed
Duty cycle requirements
For high-speed applications like drones or gimbals,a Miniature Slip Ring or micro slip ring is often more stable due to reduced friction and lower inertia.
Space limitations are one of the main reasons engineers choose capsule slip rings.
Depending on available space,you may select:
Small slip ring for basic compact installations
Mini capsule slip ring for tight electronic assemblies
Compact slip ring for industrial integration
Micro slip ring for ultra-miniature systems
Always measure the installation area before final selection.
Operating conditions greatly influence slip ring performance.
Ask the following questions:
Will the system be exposed to dust or moisture?
Is waterproofing required?
Will it operate in high temperature or vibration environments?
For harsh environments,choose sealed or industrial-grade capsule slip rings designed for durability.
The internal structure of a capsule slip ring affects its lifespan and stability.
Important materials include:
Gold-to-gold contacts for low resistance
Carbon brushes for durability
High-quality insulation materials
Better materials reduce wear and ensure stable signal transmission over time.
Slip ring lifespan is measured in rotation cycles.
High-quality capsule slip rings can last millions of rotations under proper conditions.
To extend service life:
Avoid overload conditions
Maintain proper alignment
Keep the device clean
Operate within rated speed
Lower-quality products may require frequent replacement,increasing maintenance costs.
Sometimes standard products are not enough.
You may need a custom capsule slip ring when:
You require special circuit combinations
You need high-speed data transmission
Your system has unique size limitations
You require waterproof or military-grade performance
Custom solutions provide better system integration and performance optimization.
Capsule slip rings are widely used in many industries:
Used in PTZ cameras requiring 360°rotation.
Provides continuous electrical connection in robotic arms.
Lightweight mini capsule slip ring used in gimbals.
Used in rotary tables and production lines.
Precision micro slip ring used in imaging systems.
Before final purchase,confirm:
Number of circuits
Voltage and current rating
Signal type requirements
Size constraints(mini,compact,micro)
Rotation speed
Environmental conditions
Lifespan expectations
This ensures you select the most suitable capsule slip ring for your system.
You should consider circuit requirements,voltage,current,size,signal type,and environmental conditions.
Electrical specifications(voltage,current,and signal type)are the most critical factors.
Use a micro slip ring when the installation space is extremely limited and precision is required.
Yes,many models support analog,digital,and high-speed data transmission.
A mini capsule slip ring is smaller and used for tight spaces,while a compact slip ring balances size and higher channel capacity.
