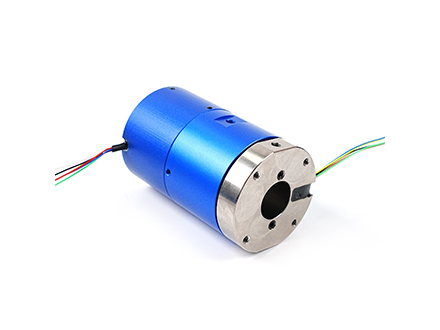

How Does an Electrical Rotary Union Work?

An Electrical rotary union is a mechanical-electrical device that enables continuous transmission of electrical power and signals between a stationary component and a rotating component.It solves a common problem in rotating machinery:how to transfer electricity and data without twisting,damaging,or limiting cables.

In modern industrial systems,many machines require unlimited rotation while maintaining stable electrical connections.Examples include robotic arms,wind turbines,packaging machines,medical scanners,and surveillance systems.Electrical Rotary Unions provide a reliable solution by using a rotating conductive interface to maintain continuous electrical contact.

The Basic Working Principle of an Electrical Rotary Union

The working principle of an Electrical Rotary Union is based on the sliding electrical contact between rotating conductive rings and stationary brushes.

A typical electrical rotary union contains two main parts:

• Rotor:The rotating part connected to the moving machine component

• Stator:The stationary part connected to the fixed electrical system

Inside the device,conductive rings are mounted on the rotor,while brushes are installed on the stator.When the rotor turns,the brushes maintain contact with the rotating rings,allowing electrical current and signals to pass continuously.

The basic transmission process is:

Stationary power source→Stator brushes→Conductive rings→Rotating equipment

This structure allows the machine to rotate freely while maintaining uninterrupted electrical transmission.

Main Components of an Electrical Rotary Union

Understanding the internal structure helps explain how an electrical rotary union operates.

1.Conductive Rings

Conductive rings are the main transmission paths inside the rotary union.

They are usually made from materials with excellent electrical conductivity,such as:

• Copper alloys

• Gold-plated materials

• Silver alloy contacts

The number of rings determines how many electrical circuits can be transmitted.

For example:

• Single-channel rotary unions handle basic power transmission

• Multi-channel rotary unions can transmit power,signals,and communication data simultaneously

2.Brushes

Brushes provide continuous contact with the rotating rings.

Common brush materials include:

• Precious metal brushes

• Carbon brushes

• Graphite brushes

High-quality brushes help reduce:

• Electrical noise

• Contact resistance

• Signal interruption

• Mechanical wear

3.Bearings

Bearings support smooth rotation between the rotor and stator.

They help ensure:

• Stable rotation

• Low friction

• Long operating life

• Reduced mechanical vibration

4.Housing

The housing protects internal components from environmental factors.

Depending on the application,housings may provide resistance against:

• Dust

• Moisture

• Vibration

• Temperature changes

For outdoor or industrial environments,waterproof electrical rotary unions with higher IP protection ratings are often selected.

How Does Electrical Signal Transmission Occur During Rotation?

One of the biggest advantages of an Electrical Rotary Union is maintaining signal transmission during continuous movement.

The process works as follows:

Step 1:Electrical Input

Power or data signals enter through the stationary side of the rotary union.

Step 2:Brush-to-Ring Contact

The stationary brushes maintain physical contact with the rotating conductive rings.

Step 3:Rotation Without Cable Twisting

As the equipment rotates,the rings move with the rotor while the brushes remain fixed.

Step 4:Signal Output

The transmitted electrical power or signals leave through the rotating side and reach the connected equipment.

This allows machines to rotate continuously without requiring flexible cables that may eventually break due to repeated twisting.

How Does an Electrical Rotary Union Transmit Different Signals?

Modern electrical rotary unions are not limited to simple power transmission.They can support multiple signal types.

Power Transmission

Used for supplying electrical energy to rotating devices.

Examples:

• Motors

• Rotating platforms

• Industrial machinery

Control Signals

Used for machine communication and control.

Examples:

• Sensor signals

• Encoder signals

• PLC communication

Data Transmission

Advanced rotary unions can support:

• Ethernet

• USB

• RS232

• RS485

• CAN Bus

• Video signals

This makes them suitable for complex automation systems.

Electrical Rotary Union Working in Different Applications

1.Industrial Automation

In automated production systems,rotating parts often require continuous power and signal connections.

Electrical rotary unions are used in:

• Rotary indexing tables

• Assembly machines

• Packaging equipment

• CNC systems

They improve machine reliability by preventing cable damage caused by repeated rotation.

2.Robotics

Robotic arms require flexible movement across multiple axes.

An electrical rotary union allows robots to transmit:

• Motor power

• Sensor signals

• Control data

while maintaining smooth and unlimited rotation.

3.Wind Turbines

Wind turbines continuously rotate to capture wind energy.

Electrical rotary unions help transfer:

• Control signals

• Power

• Monitoring data

between rotating turbine components and stationary systems.

4.PTZ Cameras and Surveillance Systems

Pan-tilt-zoom cameras require continuous rotation while maintaining video and power connections.

Electrical rotary unions allow:

• 360-degree camera rotation

• Stable video transmission

• Continuous power supply

Electrical Rotary Union vs Traditional Cable Connection

For systems requiring frequent or continuous rotation,electrical rotary unions provide a much more reliable solution.

Factors Affecting Electrical Rotary Union Performance

Several factors determine the performance and lifespan of an electrical rotary union.

Rotation Speed

Higher-speed applications require optimized contact designs and precision bearings.

Current and Voltage Rating

The rotary union must match the electrical load requirements.

Number of Circuits

More complex equipment may require multiple channels for power and data transmission.

Environmental Conditions

Industrial applications may require protection against:

• Dust

• Water

• Oil

• Extreme temperatures

• Material Quality

High-quality conductive materials and precision manufacturing improve service life and transmission stability.

FAQ

1.What is the main function of an electrical rotary union?

An electrical rotary union transfers electrical power and signals between stationary and rotating components while allowing continuous rotation without cable twisting.

2.How does an electrical rotary union transmit electricity while rotating?

It uses conductive rings and stationary brushes to maintain continuous electrical contact during rotation,allowing power and signals to pass between fixed and moving parts.

3.What is the difference between an electrical rotary union and a Slip Ring?

An electrical rotary union often refers to a complete rotary transmission device,while a slip ring is the core electrical contact mechanism inside many rotary unions.

4.Can an electrical rotary union transmit both power and data?

Yes.Many modern electrical rotary unions can transmit power,control signals,Ethernet,RS485,CAN Bus,and other communication signals simultaneously.

5.How long does an electrical rotary union last?

The service life depends on design quality,rotation speed,electrical load,and operating environment.High-quality models can provide millions of rotation cycles under suitable conditions.
