In modern industrial systems,transferring electrical power,data,and signals between stationary and rotating parts can be challenging.Traditional cabling often fails under continuous rotation,causing cable twisting,wear,or signal interruption.This is where a Through Bore Slip Ring comes into play.Also known as a hollow shaft slip ring or rotary electrical connector,it provides a reliable solution for continuous 360-degree rotation while allowing mechanical components like shafts,hydraulic lines,or fiber optics to pass through its center.
This article explains how a Through Bore Slip Ring works,its functions,features,applications,and comparisons with similar products,making it an essential guide for engineers,automation professionals,and industrial buyers.

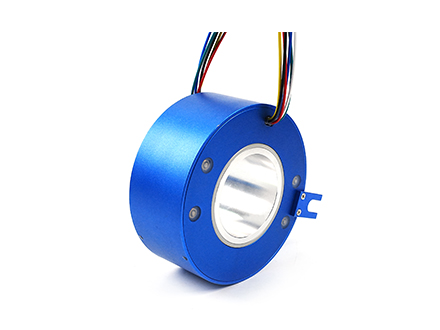

A through bore slip ring is an electromechanical device that transmits electrical power,signals,or data from a stationary part to a rotating component.The key feature that sets it apart from standard slip rings is the central hollow shaft or bore,which allows other mechanical or electrical elements to pass through the center,without interfering with rotation.
This unique design makes Through Bore Slip Rings ideal for rotating machinery,industrial automation,robotics,wind turbines,and other systems where uninterrupted rotation and multi-functional connections are required.
The working principle of a through bore slip ring is relatively straightforward but highly efficient.It consists of two main parts:
Rotor–The rotating part connected to the moving machinery.
Stator–The stationary part connected to the fixed structure.
Inside the slip ring,conductive rings are mounted on the rotor,and brushes or contacts are attached to the stator.As the rotor turns,the brushes maintain continuous contact with the rings,allowing power and signals to flow without interruption.
The hollow center allows a shaft,hydraulic tube,fiber optic line,or cable bundle to pass through,eliminating the need for complex cable management systems.This enables 360-degree continuous rotation without tangling or damage to cables.
Through bore slip rings transmit electrical current to rotating equipment such as motors,generators,and cranes.High-current versions can handle heavy industrial loads efficiently.
They can carry analog signals,digital signals,and industrial communication protocols like Ethernet,CAN Bus,RS485,or Profibus,supporting automation and control systems.
Hybrid through bore slip rings combine electrical circuits with pneumatic,hydraulic,or fiber optic channels,allowing mechanical systems to pass through the center while maintaining continuous data and power transfer.
By integrating electrical and mechanical pathways,through bore slip rings reduce system complexity,save installation space,and improve operational reliability.
Hollow Shaft Design–Supports shafts,hoses,and cables passing through the center.
360°Continuous Rotation–Eliminates cable twisting or damage.
Low Electrical Noise–Maintains signal integrity for sensitive devices.
Long Lifespan–High-quality brushes and contacts can operate millions of revolutions.
Customizable–Options for bore diameter,voltage,current,and number of circuits.
Compact Integration–Combines power and signal transmission in a single unit.
Through bore slip rings are widely used in industrial and high-tech applications where continuous rotation and reliable signal/power transmission are essential:
Rotary indexing tables,conveyor systems,and packaging machinery use through bore slip rings to transmit control signals and power without cable tangling.
Robotic arms and automated manipulators require continuous rotation and precise signal transmission,making slip rings essential.
Slip rings transmit power and control signals from the nacelle to rotating blades,ensuring optimal performance and monitoring.
CT scanners,MRI machines,and rotating diagnostic devices rely on through bore slip rings for stable data and power transmission.
Pan-tilt-zoom cameras and radar systems use slip rings to maintain 360-degree rotation while transmitting signals reliably.
Cranes,excavators,and rotating platforms integrate slip rings to power motors and transmit control signals.
| Feature | Through Bore Slip Ring | Capsule Slip Ring |
| Central Bore | Yes | No |
| Application | Rotating machinery with shafts/pipes | Compact electrical transmission |
| Size | Larger | Smaller and compact |
| Power Capacity | High | Medium to low |
| Industrial Use | Heavy-duty | Light to medium-duty |
| Flexibility | High | Limited |
Through bore slip rings are preferred when the system requires a central passage for shafts or hoses,whereas Capsule Slip Rings are more suitable for compact installations without a shaft.
Consider the following factors when selecting a slip ring:
Bore Diameter–Must accommodate the shaft,cable,or hose.
Electrical Requirements–Voltage,current,and number of circuits.
Rotational Speed–Maximum RPM the device can support.
Environmental Conditions–Dust,moisture,vibration,and temperature.
Signal Type–Analog,digital,Ethernet,or hybrid communication.
Lifespan and Maintenance–Quality materials reduce maintenance frequency.
It allows electrical power,data,and signals to pass from stationary to rotating components while providing a hollow center for mechanical or electrical elements.
Yes.Modern slip rings can support high-speed Ethernet,USB,CAN Bus,and other industrial communication protocols.
Quality units can operate for tens of millions of revolutions,depending on speed,load,and environmental conditions.
Industrial automation,robotics,wind energy,medical devices,packaging machinery,and surveillance systems are among the most frequent users.
Yes.Many models are sealed with high IP ratings to withstand dust,moisture,and extreme temperatures.
