How Does A Capsule Slip Ring Work?

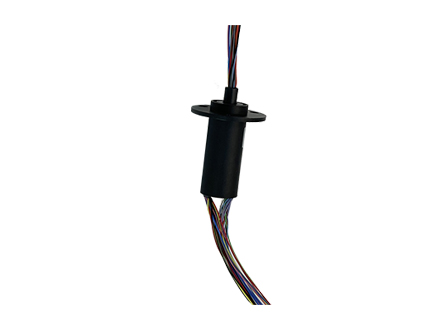

Capsule Slip Rings are essential electromechanical devices widely used in modern automation systems, robotics, surveillance equipment, medical devices, and rotating machinery. Designed to transmit electrical power and signals from a stationary structure to a rotating component, a Capsule Slip Ring provides stable and continuous electrical connection during rotation. Because of their small size and reliable performance, these devices have become increasingly important in compact industrial and electronic applications.

The working principle of capsule slip rings is based on conductive contact technology. Inside the device, conductive rings are mounted on the rotating shaft while conductive brushes remain stationary. As the shaft rotates, the brushes maintain continuous contact with the rings, allowing electrical current and signals to pass through without interruption. This design enables rotating equipment to operate continuously while maintaining stable power and signal transmission.

A major advantage of a compact slip ring is its miniature structure. Unlike large industrial slip rings, capsule designs are optimized for equipment with limited installation space. Their lightweight and compact housing make them ideal for small rotating systems such as CCTV cameras, drones, robotic arms, automated inspection devices, and portable medical equipment.

The internal components of a Miniature Slip Ring are engineered for high precision and long service life. Many manufacturers use gold-to-gold contact technology to reduce electrical resistance, minimize signal loss, and improve transmission stability. Gold-plated conductive surfaces also help reduce friction and wear, allowing the electrical slip ring to maintain reliable performance even after millions of rotations.

Another important feature of a capsule slip ring is its ability to transmit multiple types of signals simultaneously. In addition to electrical power, modern electrical slip ring systems can transfer Ethernet signals, USB communication, video signals, and sensor data. This makes capsule slip rings highly suitable for advanced automation systems and intelligent electronic devices that require both power and high-speed data transmission.

Capsule slip rings are commonly used in surveillance and security systems. For example, rotating CCTV cameras rely on slip rings to transmit video signals and electrical power while allowing the camera to rotate freely. In robotics and industrial automation, Miniature Slip Ring technology supports smooth rotational movement in robotic joints and automated machinery without cable twisting or signal interruption.

Medical devices also benefit from compact slip ring technology. Equipment such as CT scanners, imaging systems, and precision diagnostic machines require continuous rotational operation while maintaining stable electrical connections. The compact design and reliable transmission capabilities of capsule slip rings make them ideal for these demanding applications.

As industries continue moving toward smaller and more intelligent equipment, the demand for high-performance capsule slip rings continues to grow. With compact structure, stable signal transmission, low electrical noise, and long operational lifespan, capsule slip ring technology remains an essential solution for modern rotating electronic systems and industrial automation equipment.
