RH60130 series through-hole conductive Slip rings

Standard series integral precision conductive slip rings with an outer diameter of 130mm and a through hole diameter of 60mm (applicable to <=60mm).

If an inner hole of less than 60mm is required, it can be solved by adding an inner lining bushing.

Ordering Model Description

RH: Series code for hollow slip rings

60130: 60-inner diameter 60mm; 130-outer diameter 130mm

Number of Current paths:
0610:06 represents 6 channels, 10 represents each channel can pass 10A current
1230:12 represents 12 channels, 30 represents each channel can pass 30A current

Number of signal paths:
06S:06 stands for Channel 6, and S stands for signal line
12S:12 represents 12 channels and S represents the signal line

Inquire Now

Product Details

Standard series integral precision conductive slip rings with an outer diameter of 130mm and a through hole diameter of 60mm (applicable to <=60mm).

If an inner hole of less than 60mm is required, it can be solved by adding an inner lining bushing.

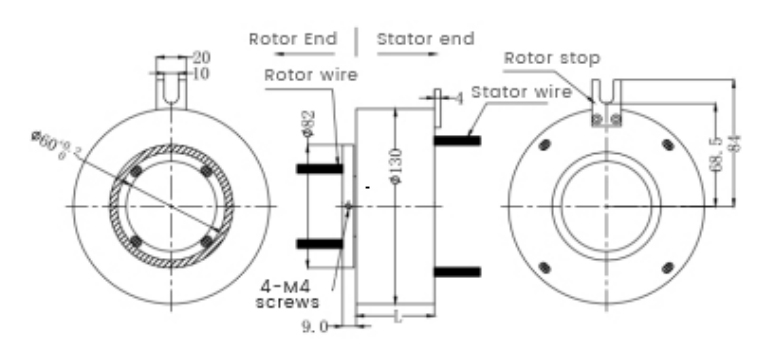

1749455516402135

Selection table

RH60130 Series through-hole Slip ring Selection Table
Model	10A	Signal or 5A	L (mm)	Model	10A	Signal or 5A	L (mm)
RH60130-02S	0	2	52	RH60130-36S	0	36	172
RH60130-0210	2	0	52	RH60130-0610-30S	6	30	172
RH60130-03S	0	3	52	RH60130-1210-S24	12	24	172
RH60130-0310	3	0	52	RH60130-3610	36	0	172
RH60130-06S	0	6	52	RH60130-42S	0	42	196
RH60130-0210-04S	2	4	52	RH60130-0610-36S	6	36	196
RH60130-0410-02S	4	2	52	RH60130-1210-30S	12	30	196
RH60130-0610	6	0	52	RH60130-4210	42	0	196
RH60130-12S	0	12	76	RH60130-48S	0	48	220
RH60130-0210-10S	2	10	76	RH60130-0610-42S	6	42	220
RH60130-0310-09S	3	9	76	RH60130-1210-36S	12	36	220
RH60130-0610-06S	6	6	76	RH60130-1810-30S	18	30	220
RH60130-0810-04S	8	4	76	RH60130-2410-24S	24	24	220
RH60130-1010-02S	10	2	76	RH60130-4810	48	0	220
RH60130-1210	12	0	76	RH60130-60S	0	60	268
RH60130-18S	0	18	100	RH60130-0610-54S	6	54	268
RH60130-0210-16S	2	16	100	RH60130-0910-51S	9	51	268
RH60130-0410-14S	4	14	100	RH60130-1210-48S	12	48	268
RH60130-0610-12S	6	12	100	RH60130-2410-36S	24	36	268
RH60130-0810-10S	8	10	100	RH60130-72S	0	72	316
RH60130-1010-08S	10	8	100	RH60130-1210-60S	12	60	316
RH60130-1210-06S	12	6	100	RH60130-2410-48S	24	48	316
RH60130-1410-04S	14	4	100	RH60130-3610-36S	36	36	316
RH60130-1610-02S	16	2	100	RH60130-84S	0	84	364
RH60130-24S	0	24	124	RH60130-1210-72S	12	72	364
RH60130-0410-20S	4	20	124	RH60130-2410-60S	24	60	364
RH60130-0610-18S	6	18	124	RH60130-3610-48S	36	48	364
RH60130-1210-12S	12	12	124	RH60130-96S	0	96	412
RH60130-1810-06S	18	6	124	RH60130-1210-84S	12	84	412
RH60130-2410	24	0	124	RH60130-2410-72S	24	72	412
RH60130-S30	0	30	144.4	RH60130-P2410-S96	24	96	484.8
RH60130-30S	0	30	148	RH60130-3610-60S	36	60	412
RH60130-0610-24S	6	24	148	RH60130-4210-54S	42	56	412
RH60130-1210-18S	12	18	148	RH60130-108S	0	108	460
RH60130-1810-12S	18	12	148	RH60130-1210-96S	12	96	460
RH60130-2410-06S	24	6	148	RH60130-2410-84S	24	84	460
RH60130-3010	30	0	148	RH60130-3610-72S	36	72	460

Note:

N 10A current loops combined can be used as one N*10A current loop.

For example:

Two loops of 10A are combined and used as one route of 20A.

10A and signal (5A) can be combined arbitrarily. For details, please consult customer service.

Non-standard customization is available on standard products. Please consult customer service.

Technical specification parameters

Electrical technical specifications
Parameters	Numerical value
	Power	Signal
Rated voltage	0~220VAC/VDC	0~220VAC/VDC
Insulation resistance	500 m Ω / 500 VDC	500 m Ω / 500 VDC
Wire specification	AWG17# Tin-coated Teflon	AWG22# Tin-coated Teflon
Wire length	Standard length: 300mm (adjustable as required)
Insulation strength	500VAC@50Hz, 60s
Dynamic resistance change value	< 0.01 Ω
Mechanical technical indicators
Parameters	Numerical value
Working life	≥20 million revolutions
Maximum rotational speed	1~250rpm
Working temperature	- 30 ℃ ~ 80 ℃
Working humidity	0~85% RH
Contact material	Precious metals
Shell material	Aluminum alloy
Rotational torque	0.1N.m; +0.03N.m/6 channels
Protection grade	IP51

Color code table of each loop conductor

Loop road	1	2	3	4	5	6	7	8	9	10	11	12
Colour	black	red	yellow	green	blue	white	black	red	yellow	green	blue	white

Note:

Six colors form a group, and the numbers are respectively 1... 6. The next group starts from 7... 12. Repeat the first six colors, and each group is identified by a number tube as the group number.

Non-standard customization is available

Note:

The following special requirements can all be customized. The delivery time will increase by 3 to 15 days, and the cost will increase by 5% to 50%. Most of the basic accessories of our company are standardized and modularized. Non-standard customization can also greatly reduce costs and delivery time.

① The lead-out method and lead-out length of the rotor and stator can be customized.

② Due to structural limitations, it can be customized according to the specified length, height or outer diameter.

③ It can support up to 200 power currents or signals at most.

④ Optional aviation plugs, terminals and heat shrink tubes are available.

⑤ Mixed slip rings for servo system signals, power lines and encoder lines of Yaskawa, Panasonic, Siemens, etc.

⑥ Capable of mixed high-speed data transmission (including Ethernet, USB, RS232,RS485,Profibus, CanBUS,CANOPEN, DeviceNET, CC-LINK, ProfiNET, EtherCAT and various other industrial buses).

⑦ Mixing of temperature control signals and thermocouple signals.

⑧ Customized for shockproof, high-temperature and other special environments.

⑨ It can be integrated with pneumatic and hydraulic rotary joints as a gas-electro-hydraulic slip ring.

⑩ High-temperature customization can reach up to 500 degrees.

⑪ High voltage can be customized up to 110kV.

⑫ High speed 10,000 RPM.

⑬ Current up to 5000 amperes (A).

⑭ Military grade.

⑮ Waterproof, underwater mode optional, IP65,IP68 optional.

⑯ Requirements for stainless steel housing.
