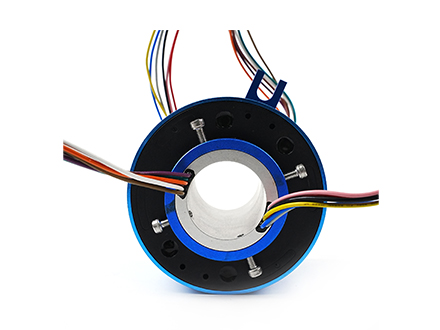

RH3899 Series through-hole conductive Slip rings

The outer diameter is 99mm, and the through hole diameter is 38.1mm. It is suitable for the standard series of integral precision conductive slip rings with an outer diameter of <=38.1mm.

Ordering Model Description

RH: Series code for hollow slip rings

3899: 38-inner diameter 38.1mm; 99-outer diameter 99mm

Number of Current paths:
0610:06 represents 6 channels, 10 represents each channel can pass 10A current
1230:12 represents 12 channels, 30 represents each channel can pass 30A current

Number of signal paths:
06S:06 stands for Channel 6, and S stands for signal line
12S:12 represents 12 channels and S represents the signal line

Inquire Now

Product Details

The outer diameter is 99mm, and the through hole diameter is 38.1mm. It is suitable for the standard series of integral precision conductive slip rings with an outer diameter of <=38.1mm.<>

* Note:

If an inner hole of less than 38.1mm is required, it can be solved by adding an inne lining bushing.

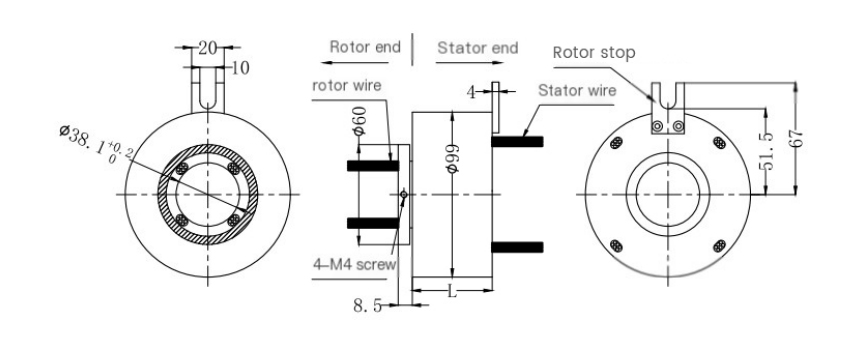

1749437914838500

Selection table

RH3899 Series Through-hole Slip Ring Selection Table
Model	10A	Signal or 5A	L (mm)	Model	10A	Signal or 5A	L (mm)
RH3899-0310	3	0	47.7	RH3899-30S	0	30	141.3
RH3899-06S	0	6	47.7	RH3899-0610-24S	6	24	141.3
RH3899-0210-04S	2	4	47.7	RH3899-1210-18S	12	18	141.3
RH3899-0410-02S	4	2	47.7	RH3899-1810-12S	18	12	141.3
RH3899-0610	6	0	47.7	RH3899-2410-06S	24	6	141.3
RH3899-12S	0	12	71.1	RH3899-3010	30	0	141.3
RH3899-0210-10S	2	10	71.1	RH3899-36S	0	36	164.7
RH3899-0310-09S	3	9	71.1	RH3899-0610-30S	6	30	164.7
RH3899-0610-06S	6	6	71.1	RH3899-1210-24S	12	24	164.7
RH3899-0810-04S	8	4	71.1	RH3899-3610	36	0	164.7
RH3899-1010-02S	10	2	71.1	RH3899-42S	0	42	188.1
RH3899-1210	12	0	71.1	RH3899-0610-36S	6	36	188.1
RH3899-0210-7S	2	7	71.1	RH3899-1210-30S	12	30	188.1
RH3899-18S	0	18	94.5	RH3899-48S	0	48	211.5
RH3899-0210-16S	2	16	94.5	RH3899-0610-42S	6	42	211.5
RH3899-0410-14S	4	14	94.5	RH3899-1010-38S	10	38	211.5
RH3899-0610-12S	6	12	94.5	RH3899-1210-36S	12	36	211.5
RH3899-0810-10S	8	10	94.5	RH3899-1810-30S	18	30	211.5
RH3899-1010-08S	10	8	94.5	RH3899-2410-24S	24	24	211.5
RH3899-1210-06S	12	6	94.5	RH3899-60S	0	60	258.3
RH3899-1410-04S	14	4	94.5	RH3899-0610-54S	6	54	258.3
RH3899-1610-02S	16	2	94.5	RH3899-1010-50S	10	50	258.3
RH3899-24S	0	24	117.9	RH3899-1210-48S	12	48	258.3
RH3899-0410-20S	4	20	117.9	RH3899-72S	0	72	305.1
RH3899-0610-18S	6	18	117.9
Model	10A	USB or network cable	L (mm)	Model	10A	USB or network cable	L (mm)
RH3899-0210-1E	2	5	71.1	RH3899-0210-1ES	2	9	71.1
Model	20A	Signal or network cable	L (mm)	Model	20A	Signal or network cable	L (mm)
RH3899-0220-2S-1ES	2	11	78.9	RH3899-0320-2S-1ES	3	5	82.8
Model	20A	Temperature-sensing line	L (mm)	Model	20A	Temperature-sensing line	L (mm)
RH3899-0320-1K	3	2	71.1	RH3899-0420-1K	4	2	71.1
RH3899-0320-1P	3	3	71.1	RH3899-0420-1P	4	3	71.1

Note:

N 10A current loops combined can be used as one N*10A current loop.

For example:

Two loops of 10A are combined and used as one route of 20A.

10A and signal (5A) can be combined arbitrarily. For details, please consult customer service.

Non-standard customization is available on standard products. Please consult customer service.

Technical specification parameters

Electrical technical specifications
Parameters	Numerical value
	Power	Signal
Rated voltage	0~220VAC/VDC	0~220VAC/VDC
Insulation resistance	500 m Ω / 500 VDC	500 m Ω / 500 VDC
Wire specification	AWG17#, AWG14# tin-coated Teflon	AWG22# Tin-coated Teflon
Wire length	Standard length: 300mm (adjustable as required)
Insulation strength	500VAC@50Hz, 60s
Dynamic resistance change value	< 0.01 Ω
Mechanical technical indicators
Parameters	Numerical value
Working life	≥20 million revolutions
Maximum rotational speed	1~250rpm
Working temperature	- 30 ℃ ~ 80 ℃
Working humidity	0~85% RH
Contact material	Precious metals
Shell material	Aluminum alloy
Rotational torque	0.1N.m; +0.03N.m/6 channels
Protection grade	IP51

Color code table of each loop conductor

Loop road	1	2	3	4	5	6	7	8	9	10	11	12
Colour	black	red	yellow	green	blue	white	black	red	yellow	green	blue	white

Note:

Six colors form a group, and the numbers are respectively 1... 6. The next group starts from 7... 12. Repeat the first six colors, and each group is identified by a number tube as the group number.

Non-standard customization is available

Note:

The following special requirements can all be customized. The delivery time will increase by 3 to 15 days, and the cost will increase by 5% to 50%. Most of the basic accessories of our company are standardized and modularized. Non-standard customization can also greatly reduce costs and delivery time.

① The lead-out method and lead-out length of the rotor and stator can be customized.

② Due to structural limitations, it can be customized according to the specified length, height or outer diameter.

③ It can support up to 200 power currents or signals at most.

④ Optional aviation plugs, terminals and heat shrink tubes are available.

⑤ Mixed slip rings for servo system signals, power lines and encoder lines of Yaskawa, Panasonic, Siemens, etc.

⑥ Capable of mixed high-speed data transmission (including Ethernet, USB, RS232,RS485,Profibus, CanBUS,CANOPEN, DeviceNET, CC-LINK, ProfiNET, EtherCAT and various other industrial buses).

⑦ Mixing of temperature control signals and thermocouple signals.

⑧ Customized for shockproof, high-temperature and other special environments.

⑨ It can be integrated with pneumatic and hydraulic rotary joints as a gas-electro-hydraulic slip ring.

⑩ High-temperature customization can reach up to 500 degrees.

⑪ High voltage can be customized up to 110kV.

⑫ High speed 10,000 RPM.

⑬ Current up to 5000 amperes (A).

⑭ Military grade.

⑮ Waterproof, underwater mode optional, IP65,IP68 optional.

⑯ Requirements for stainless steel housing.
