RH1256F Series through-hole conductive Slip rings

The rotor is installed with a flange, and the through hole diameter is 12.7mm (1/2", suitable for <=12.7mm)

Standard series integral precision conductive slip rings.

Ordering Model Description

RH: Series code for hollow slip rings

1256:12 - Inner diameter 12.7mm; 54- Outer diameter 54mm

Number of Current paths:
0610:06 represents 6 channels, and 10 indicates that each channel can carry a current of 10A
0220:02 represents 2 channels, and 20 indicates that each channel can carry a current of 20A

Number of signal paths:
06S:06 stands for Channel 6, and S stands for signal line
12S:12 represents 12 channels and S represents the signal line

Inquire Now

Product Details

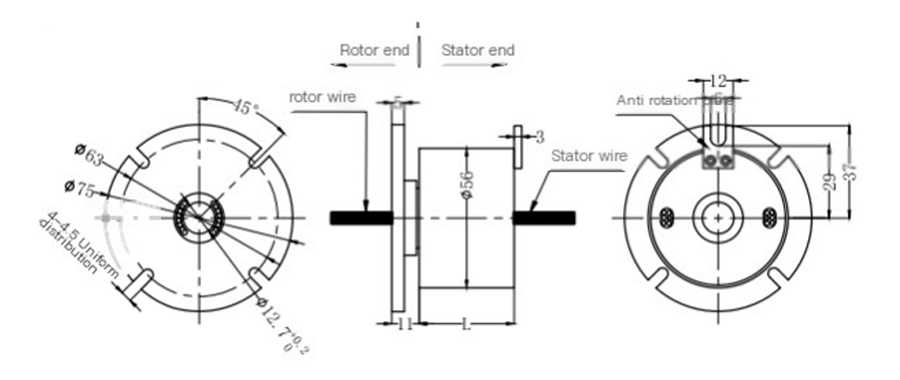

The rotor is installed with a flange, and the through hole diameter is 12.7mm (1/2", suitable for <=12.7mm)<>

Standard series integral precision conductive slip rings.

* Note:

If an inner hole of less than 12.7mm is required, it can be solved by adding an inner lining bushing.

1749268120217491

Selection table

RH1256F Series Through-hole Slip Ring Selection Table
Model	10A	Signal or 5A	L (mm)	Model	10A	Signal or 5A	L (mm)
RH1256F-02S	0	2	26	RH1256F-1010-08S	10	8	74
RH1256F-0210	2	0	26	RH1256F-1210-06S	12	6	74
RH1256F-03S	0	3	29	RH1256F-1410-04S	14	4	74
RH1256F-0310	3	0	29	RH1256F-1610-02S	16	2	74
RH1256F-06S	0	6	38	RH1256F-24S	0	24	92
RH1256F-0210-04S	2	4	38	RH1256F-0410-20S	4	20	92
RH1256F-0410-02S	4	2	38	RH1256F-0610-18S	6	18	92
RH1256F-0610	6	0	38	RH1256F-1210-12S	12	12	92
RH1256F-12S	0	12	56	RH1256F-1810-06S	18	6	92
RH1256F-0210-10S	2	10	56	RH1256F-2410	24	0	92
RH1256F-0310-09S	3	9	56	RH1256F-30S	0	30	110
RH1256F-0610-06S	6	6	56	RH1256F-0210-28S	2	28	110
RH1256F-0810-04S	8	4	56	RH1256F-0410-26S	4	26	110
RH1256F-1010-02S	10	2	56	RH1256F-0610-24S	6	24	110
RH1256F-1210	12	0	56	RH1256F-36S	0	36	128
RH1256F-0210-7S	2	7	56	RH1256F-0410-32S	4	32	128
RH1256F-18S	0	18	74	RH1256F-0610-30S	6	30	128
RH1256F-0210-16S	2	16	74	RH1256F-42S	0	42	146
RH1256F-0410-14S	4	14	74	RH1256F-0410-38S	4	38	146
RH1256F-0610-12S	6	12	74	RH1256F-48S	0	48	164
RH1256F-0810-10S	8	10	74
Model	10A	USB or signal	L (mm)	Model	10A	USB or signal	L (mm)
RH1256F-0210-1E	2	5	56	U2 RH1256F - 0210-1. 0	2	5	56
RH1256F-0210-1ES	2	9	56

Note:

N 10A current loops combined can be used as one N*10A current loop. For example: Two loops of 10A are combined and used as one route of 20A.

10A and signal (5A) can be combined arbitrarily. For details, please consult customer service. Non-standard customization is available on standard products. Please consult customer service.

Technical specification parameters

Electrical technical specifications
Parameters	Numerical value
	Power	Signal
Rated voltage	220VAC/VDC	220VAC/VDC
Insulation resistance	500 m Ω / 500 VDC	500 m Ω / 500 VDC
Wire specification	AWG17 tin-coated Teflon	AWG22# Tin-coated Teflon
Wire length	Standard length: 300mm (adjustable as required)
Insulation strength	500VAC@50Hz, 60s
Dynamic resistance change value	< 0.01 Ω
Mechanical technical indicators
Parameters	Numerical value
Working life	≥20 million revolutions
Maximum rotational speed	1~250RPM
Working temperature	- 30 ℃ ~ 80 ℃
Working humidity	0~85% RH
Contact material	Precious metals
Shell material	Aluminum alloy
Rotational torque	0.1N.m; +0.03N.m/6 channels
Protection grade	IP51

Color code table of each loop conductor

Loop road	1	2	3	4	5	6	7	8	9	10	11	12
Colour	black	red	yellow	green	blue	white	black	red	yellow	green	blue	white

Note:

Six colors form a group, and the numbers are respectively 1... 6. The next group starts from 7... 12. Repeat the first six colors, and each group is identified by a number tube as the group number.

Non-standard customization is available

Note:

The following special requirements can all be customized. The delivery time will increase by 3 to 15 days, and the cost will increase by 5% to 50%. Most of the basic accessories of our company are standardized and modularized. Non-standard customization can also greatly reduce costs and delivery time.

① The lead-out method and lead-out length of the rotor and stator can be customized.

② Due to structural limitations, it can be customized according to the specified length, height or outer diameter.

③ It can support up to 200 power currents or signals at most.

④ Optional aviation plugs, terminals and heat shrink tubes are available.

⑤ Mixed slip rings for servo system signals, power lines and encoder lines of Yaskawa, Panasonic, Siemens, etc.

⑥ Capable of mixed high-speed data transmission (including Ethernet, USB, RS232,RS485,Profibus, CanBUS,CANOPEN, DeviceNET, CC-LINK, ProfiNET, EtherCAT and various other industrial buses).

⑦ Mixing of temperature control signals and thermocouple signals.

⑧ Customized for shockproof, high-temperature and other special environments.

⑨ It can be integrated with pneumatic and hydraulic rotary joints as a gas-electro-hydraulic slip ring.

⑩ High-temperature customization can reach up to 500 degrees.

⑪ High voltage can be customized up to 110kV.

⑫ High speed 10,000 RPM.

⑬ Current up to 5000 amperes (A).

⑭ Military grade.

⑮ Waterproof, underwater mode optional, IP65,IP68 optional.

⑯ Requirements for stainless steel housing.
