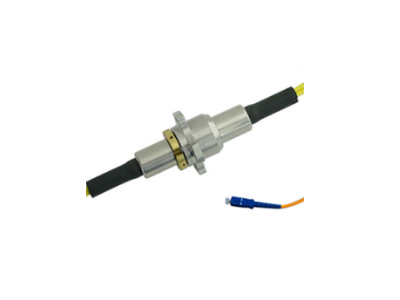

FO100A;Single channel fibre optic slip ring
Class A profile
Optical fibre type:
Fibre type code:
01:9/125um(single mode)
02:50/125um(multimode)
03:62.5/125um(multimode)
Connector Type:
Fibre optic connector with code
FC:FC connector ST:ST connector SC:SC connector LC:LC connector
The default connector end face is PC, if you need APC, you need to add APC after the connector code, such as FC/APC.
If you need APC, you need to add APC after the connector code, such as FC/APC.
Operating Fluctuation:
Operating Wavelength Code
01: 1310/1550 (single mode)
02: 850/1310 (multimode)

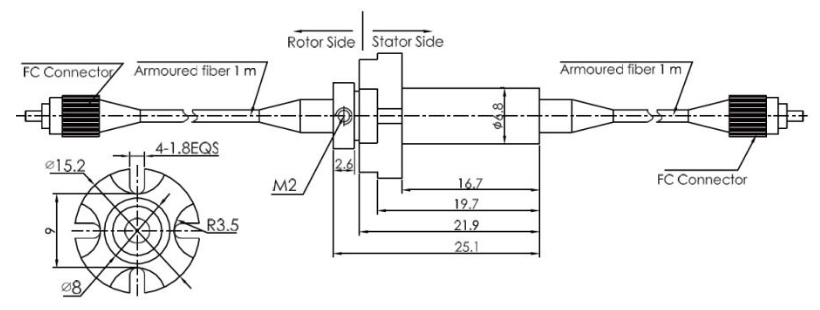

Single-channel optical fiber connector, Class A form factor.
1 optical fiber (supporting single-mode/multi-mode), suitable for places that require 360-degree unrestricted, continuous or intermittent rotation, and the transmission of large capacity data and signals from a fixed position to a rotating position. It can improve mechanical performance, simplify system operation, and prevent damage to the optical fiber caused by the rotation of moving joints.
Fo100a-01-fc-01 :FO100A indicates A single-channel optical fiber rotary joint (Class A shape), and the first 01 indicates that the optical fiber type is 9/125um(single mode).
FC indicates that the joint type is FC joint, the end face form is PC(flat), and the second 01 indicates that the wavelength is 1310/1550.
Fo100a-03-lc /APC-02:FO100A indicates A single-channel optical fiber rotary joint (Class A shape), and 03 indicates that the optical fiber type is 62.5/125m(multimode).
LC/APC indicates that the connector type is LC connector, the end face form is APC(inclined plane), and 02 indicates that the wavelength is 850/1310.
Note: If you have any special requirements for the optical fiber path, electrical slip ring path, joint type, wavelength, wire outlet method, etc., please contact the sales staff of Oubaibo.
| Specification Parameters | ||
| Indicator name | Type | |
| Single mode | Multimode | |
| Broadband (nm | Plus or minus 50 | |
| Maximum insertion loss, 12℃ (dB) | 1.2 | 0.7 |
| Insertion loss fluctuation (dB) | 0.6 or less | 0.4 or less |
| Return loss (dB) | ≥55(excluding joints) | ≥40(excluding joints) |
| Maximum input power (W) | 0.5 | |
| Maximum speed (rpm) | 2000 | |
| Estimated lifespan | More than 200 million revolutions | |
| Operating temperature (℃) | - 45 ~ 85 | |
| Storage temperature (℃) | - 50 ~ 85 | |
| Protection grade | IP68 | |
