The through hole diameter is 30mm, suitable for the standard series of precision pneumatic slip rings with a diameter of <=30mm. 2 inlet 2 outlet air slip ring, G3/8" joint pipe diameters ranging from 10 to 12mm.
The media that can pass through are: compressed air, hydrogen, nitrogen, chemical mixed gases, steam, cooling water, hot water, hot oil, petroleum, sulfuric acid, beverages, etc.

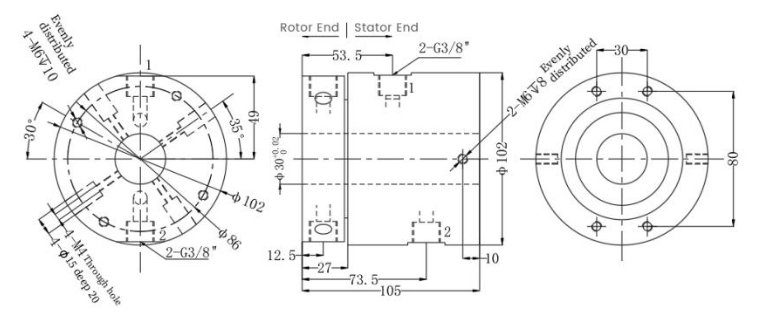

RQ3002003 through hole diameter 30mm.
2 in 2 out pneumatic slip ring.
Both the intake pipe and the exhaust pipe are 10-12mm.
Connection thread G3/8.
The through hole diameter is 30mm, suitable for the standard series of precision pneumatic slip rings with a diameter of <=30mm. 2="" inlet="" outlet="" air="" slip="" ring="">
The media that can pass through are: compressed air, hydrogen, nitrogen, chemical mixed gases, steam, cooling water, hot water, hot oil, petroleum, sulfuric acid, beverages, etc.
| RQ3002003 Series Through-hole Slip Ring Selection Table | |||
| Model | The number of trachea | Joint size | Adaptive trachea |
| RQ3002003 | 2 in and 2 out | G3/8” | 10~12mm |
| Technical specifications of rotary joints | |
| Parameters | Numerical value |
| Number of channels | 2 in and 2 out |
| Maximum pressure | 1MPa (customizable high pressure), vacuum -1.5kPa |
| Torque | < 0.2 N.m |
| Mechanical technical indicators | |
| Parameters | Numerical value |
| Working life | ≥20 million revolutions |
| Maximum rotational speed | 1~250rpm |
| Working temperature | - 30 ℃ ~ 80 ℃ |
| Working humidity | Precious metals |
| Contact material | Aluminum alloy |
| Shell material | Aluminum alloy |
| Protection grade | IP51 |
