RQ24001(24 inlet and 24 outlet air+ electric integrated slip ring)

24 inlet 24 outlet air + electric rotary joint, G1/8"joint, 6~8mm pipe diameter.

Hybrid power lines, signal lines, Ethernet, USB, industrial buses, control lines, solenoid valves, induction lines, etc. The standard is flange installation form, and hollow shaft installation can be customized. The media that can pass through are: Compressed air, hydrogen, nitrogen, chemical mixed gases, steam, cooling water, hot water, hot oil, petroleum, sulfuric acid, beverages, etc.

Order Model Description

RQ24001: 24 inlet and 24 outlet pneumatic rotary joints.
Inlet pipe and outlet pipe are 6~8mm.
The interface thread is G1/8’ connector.

Current path number:
06 represents six wires and 12 represents twelve wires
24 represents 24 wires and 36 represents 36 wires
56 represents 56 wires

Current magnitude:
05 represents 5A and 10 represents 10A
20 represents 20A

Number of signal channels:
S represents a current or signal below 2A
06S represents six signals
12S represents 12 signals
24S represents 24 signals

Inquire Now

Product Details

24 inlet 24 outlet air + electric rotary joint,G1/8" joint ,6~8mm pipe diameter.

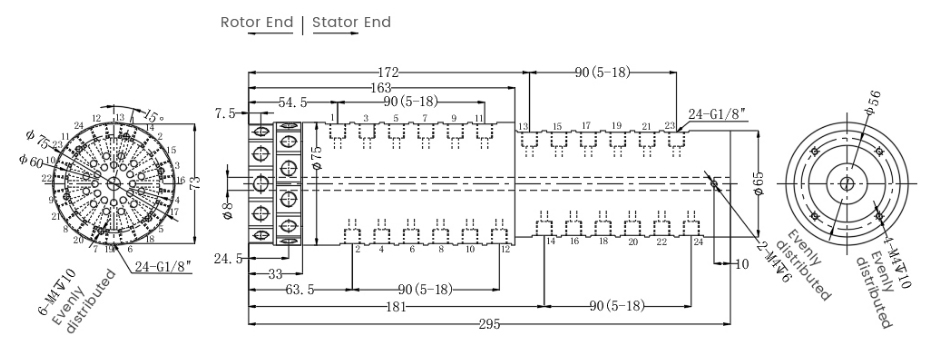

Size drawing of RQ24001 (24 inlet and 24 outlet, 6-8mm air pipe, pure pneumatic rotary joint)

1749882035355908

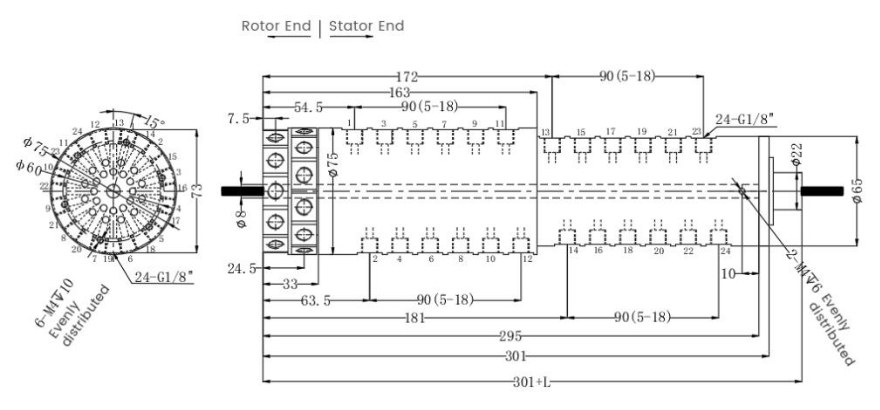

RQ24001(24in24out6-8mm air pipe +6-56 channels 2A signal (applicable to solenoid valves and induction switches) size diagram

1749882075151695

Technical specification parameters

Technical specifications of the adapter part
Parameters	Numerical value
Number of channels	24 in and 24 out
Maximum pressure	1MPa (customizable high pressure), vacuum-1.5kPa
Torque	< 0.2 N.m
Electrical technical specifications
Parameters	Numerical value
	Power	Signal
Rated voltage	0~220VAC/VDC	0~220VAC/VDC
Insulation resistance	500 m Ω / 500 VDC	500 m Ω / 500 VDC
Wire specification	AWG26# Tin-coated Teflon	AWG26# Tin-coated Teflon
Wire length	Standard length: 300mm (adjustable as required)
Insulation strength	500VAC@50Hz, 60s
Dynamic resistance change value	< 0.01 Ω
Mechanical technical indicators
Parameters	Numerical value
Working life	≥20 million revolutions
Rated rotational speed	0~250rpm
Working temperature	- 30 ℃ ~ 80 ℃
Working humidity	0~85% RH
Contact material	Precious metals
Shell material	Aluminum alloy
Protection grade	IP51

Selection table

RQ24001 Gas-Electric Integrated Slip Ring Selection Table
(16 inputs and 16 outputs, 6-8mm air pipe) +6-56 2A signals
Model	The number of trachea	Interface size	Adaptive trachea	Signal or 2A	Length (mm)
RQ24001-06S	16 in and 16 out	G1/8"	6-8mm air pipe	6	12
RQ24001-12S	16 in and 16 out	G1/8”	6-8mm air pipe	12	24.5
RQ24001-18S	16 in and 16 out	G1/8”	6-8mm air pipe	18	26.9
RQ24001-24S	16 in and 16 out	G1/8”	6-8mm air pipe	24	34.6
RQ24001-36S	16 in and 16 out	G1/8”	6-8mm air pipe	36	49.5

Note:

N 10A current loops combined can be used as one N*10A current loop.

For example:

Two loops of 10A are combined and used as one route of 20A.

The 10A and signal (5A) can be combined freely, with a maximum of 96 channels. For more details, please consult the customer service.

Non-standard customization is available on standard products. Please consult customer service.

Product Grade selection table

Product grade code	Maximum rotational speed	Working life	Seal
VC (General Grade)	100RPM	10 million revolutions	Domestic well-known brand seals
VD (Industrial Grade)	300RPM	30 million revolutions	Imported sealing parts

Color code table of each loop conductor

Loop road	1	2	3	4	5	6	7	8	9	10	11	12
Colour	black	red	yellow	green	blue	white	black	red	yellow	green	blue	white

Note:

Six colors form a group, and the numbers are respectively 1... 6. The next group starts from 7... 12. Repeat the first six colors, and each group is identified by a number tube as the group number.

Non-standard customization is available

Note:

The following special requirements can all be customized. The delivery time will increase by 3 to 15 days, and the cost will increase by 5% to 50%. Most of the basic accessories of our company are standardized and modularized. Non-standard customization can also greatly reduce costs and delivery time.

① The lead-out method and lead-out length of the rotor and stator can be customized.

② Due to structural limitations, it can be customized according to the specified length, height or outer diameter.

③ It can support up to 200 power currents or signals at most.

④ Optional aviation plugs, terminals and heat shrink tubes are available.

⑤ Mixed slip rings for servo system signals, power lines and encoder lines of Yaskawa, Panasonic, Siemens, etc.

⑥ Capable of mixed high-speed data transmission (including Ethernet, USB, RS232,RS485,Profibus, CanBUS,CANOPEN, DeviceNET, CC-LINK, ProfiNET, EtherCAT and various other industrial buses).

⑦ Mixing of temperature control signals and thermocouple signals.

⑧ Customized for shockproof, high-temperature and other special environments.

⑨ It can be integrated with pneumatic and hydraulic rotary joints as a gas-electro-hydraulic slip ring.

⑩ High-temperature customization can reach up to 500 degrees.

⑪ High voltage can be customized up to 110kV.

⑫ High speed 10,000 RPM.

⑬ Current up to 5000 amperes (A).

⑭ Military grade.

⑮ Waterproof, underwater mode optional, IP65,IP68 optional.

⑯ Requirements for stainless steel housing.
