The through hole diameter is 16mm, suitable for the standard series of precision pneumatic slip rings with a diameter of <=16mm. 4 inlet 4 outlet air slip rings, M5" joints 4~6mm pipe diameters.
The media that can pass through are: compressed air, hydrogen, nitrogen, chemical mixed gases, steam, cooling water, hot water, hot oil, petroleum, sulfuric acid, beverages, etc.

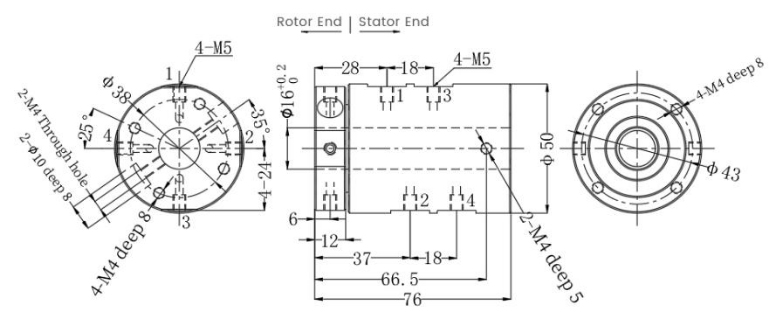

RQ1604005 through hole diameter 16mm.
4 in 2 out pneumatic slip ring.
Both the intake pipe and the exhaust pipe are 4-6mm.
M5’ connector threads.
The through hole diameter is 16mm, suitable for the standard series of precision pneumatic slip rings with a diameter of <=16mm. 4 inlet 4 outlet air slip rings, M5" joints 4~6mm pipe diameters.
The media that can pass through are: compressed air, hydrogen, nitrogen, chemical mixed gases, steam, cooling water, hot water, hot oil, petroleum, sulfuric acid, beverages, etc.
| RQ1604005 Series Through-hole Slip Ring Selection Table | |||
| Model | The number of trachea | Joint size | Adaptive trachea |
| RQ1604005 | 4 inputs and 4 outputs | M5” | 10~12mm |
| Technical specifications of rotary joints | |
| Parameters | Numerical value |
| Number of channels | 4 inputs and 4 outputs |
| Maximum pressure | 1MPa (customizable high pressure), vacuum -1.5kPa |
| Torque | < 0.2 N.m |
| Mechanical technical indicators | |
| Parameters | Numerical value |
| Working life | ≥20 million revolutions |
| Maximum rotational speed | 1~250rpm |
| Working temperature | - 30 ℃ ~ 80 ℃ |
| Working humidity | Precious metals |
| Contact material | Aluminum alloy |
| Shell material | Aluminum alloy |
| Protection grade | IP51 |
