The through hole diameter is 160 mm, suitable for the standard series of precision pneumatic slip rings with a diameter of <= 160 mm. 2 inlet 2 outlet air slip ring, G1/8" joint pipe diameters of 6 to 8 mm.
The media that can pass through are: compressed air, hydrogen, nitrogen, chemical mixed gases, steam, cooling water, hot water, hot oil, petroleum, sulfuric acid, beverages, etc.

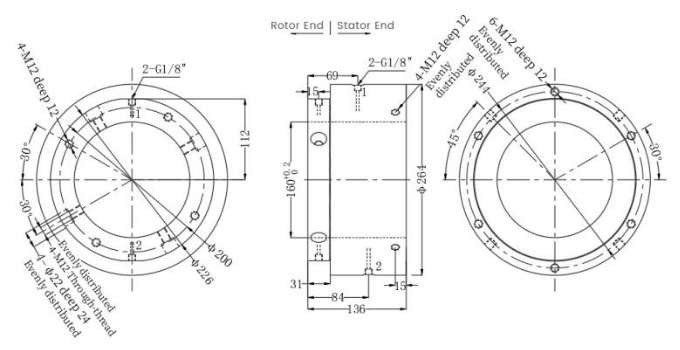

RQ16002001 through hole diameter 160 mm.
2 inlet and 2 outlet pneumatic slide ring.
Inlet pipe and outlet pipe are 6~8 mm.
The interface thread is G1/8 connector.
The through hole diameter is 160 mm, suitable for the standard series of precision pneumatic slip rings with a diameter of <= 160 mm. 2 inlet 2 outlet air slip ring, G1/8" joint pipe diameters of 6 to 8 mm.
The media that can pass through are: compressed air, hydrogen, nitrogen, chemical mixed gases, steam, cooling water, hot water, hot oil, petroleum, sulfuric acid, beverages, etc.
| RQ16002001 Series Through-hole Slip Ring Selection Table | |||
| Model | The number of trachea | Joint size | Adaptive trachea |
| RQ16002001 | 2 in and 2 out | G1/8” | 6~8mm |
| Technical specifications of rotary joints | |
| Parameters | Numerical value |
| Number of channels | 2 in and 2 out |
| Maximum pressure | 1MPa (customizable high pressure), vacuum -1.5kPa |
| Torque | < 0.2 N.m |
| Mechanical technical indicators | |
| Parameters | Numerical value |
| Working life | ≥20 million revolutions |
| Maximum rotational speed | 1~250rpm |
| Working temperature | - 30 ℃ ~ 80 ℃ |
| Working humidity | Precious metals |
| Contact material | Aluminum alloy |
| Shell material | Aluminum alloy |
| Protection grade | IP51 |
