Home > Products > Rotary Unions

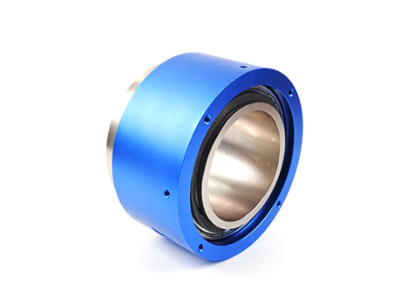

RQ7002005(2-in 2-out pneumatic slip ring)

The through hole diameter is 70 mm, suitable for the standard series of precision pneumatic slip rings with a diameter of <= 70 mm. 2 inlet 2 outlet air slip rings, M5" joints 4~6 mm pipe diameters.

The media that can pass through are: compressed air, hydrogen, nitrogen, chemical mixed gases, steam, cooling water, hot water, hot oil, petroleum, sulfuric acid, beverages, etc.

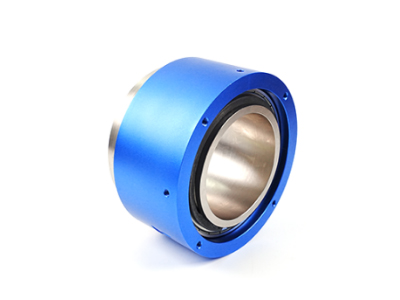

RQ7002003(2-in 2-out pneumatic slip ring)

The through hole diameter is 70 mm, suitable for the standard series of precision pneumatic slip rings with a diameter of <= 70 mm. 2 inlet 2 outlet air slip ring, G3/8" joint pipe diameters ranging from 10 to 12 mm.

The media that can pass through are: compressed air, hydrogen, nitrogen, chemical mixed gases, steam, cooling water, hot water, hot oil, petroleum, sulfuric acid, beverages, etc.

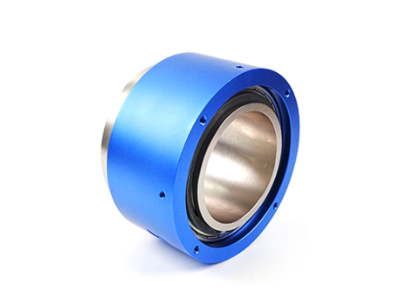

RQ7002001(2-in 2-out pneumatic slip ring)

The through hole diameter is 70 mm, suitable for the standard series of precision pneumatic slip rings with a diameter of <= 70 mm. 2 inlet 2 outlet air slip ring, G1/8" joint pipe diameters of 6 to 8 mm.

The media that can pass through are: compressed air, hydrogen, nitrogen, chemical mixed gases, steam, cooling water, hot water, hot oil, petroleum, sulfuric acid, beverages, etc.

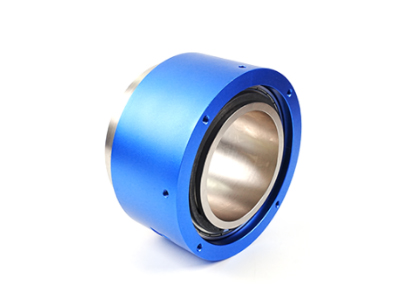

RQ6004005(4-in 4-out pneumatic slip ring)

The through hole diameter is 60 mm, suitable for the standard series of precision pneumatic slip rings with a diameter of <= 60 mm. 4 inlet 4 outlet air slip rings, M5" joints 4~6 mm pipe diameters.

The media that can pass through are: compressed air, hydrogen, nitrogen, chemical mixed gases, steam, cooling water, hot water, hot oil, petroleum, sulfuric acid, beverages, etc.

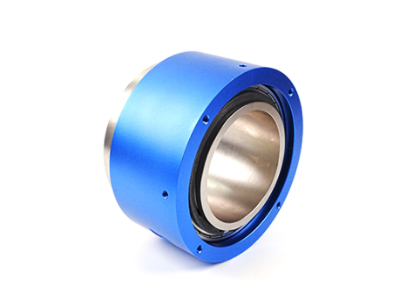

RQ6004003(4-in 4-out pneumatic slip ring)

The through hole diameter is 60 mm, suitable for the standard series of precision pneumatic slip rings with a diameter of <= 60 mm. 4 inlet 4 outlet air slip ring, G3/8" joint pipe diameters ranging from 10 to 12 mm.

The media that can pass through are: compressed air, hydrogen, nitrogen, chemical mixed gases, steam, cooling water, hot water, hot oil, petroleum, sulfuric acid, beverages, etc.

RQ6004001(4-in 4-out pneumatic slip ring)

The through hole diameter is 60 mm, suitable for the standard series of precision pneumatic slip rings with a diameter of <= 60 mm. 4 inlet 4 outlet air slip ring, G1/8" joint pipe diameters of 6 to 8 mm.

The media that can pass through are: compressed air, hydrogen, nitrogen, chemical mixed gases, steam, cooling water, hot water, hot oil, petroleum, sulfuric acid, beverages, etc.

RQ6002005(2-in 2-out pneumatic slip ring)

The through hole diameter is 60 mm, suitable for the standard series of precision pneumatic slip rings with a diameter of <= 60 mm. 2 inlet 2 outlet air slip rings, M5" joints 4~6 mm pipe diameters.

The media that can pass through are: compressed air, hydrogen, nitrogen, chemical mixed gases, steam, cooling water, hot water, hot oil, petroleum, sulfuric acid, beverages, etc.

RQ6002003(2-in 2-out pneumatic slip ring)

The through hole diameter is 60 mm, suitable for the standard series of precision pneumatic slip rings with a diameter of <= 60 mm. 2 inlet 2 outlet air slip ring, G3/8" joint pipe diameters ranging from 10 to 12 mm.

The media that can pass through are: compressed air, hydrogen, nitrogen, chemical mixed gases, steam, cooling water, hot water, hot oil, petroleum, sulfuric acid, beverages, etc.

RQ6002001(2-in 2-out pneumatic slip ring)

The through hole diameter is 60 mm, suitable for the standard series of precision pneumatic slip rings with a diameter of <= 60 mm. 2 inlet 2 outlet air slip ring, G1/8" joint pipe diameters of 6 to 8 mm.

The media that can pass through are: compressed air, hydrogen, nitrogen, chemical mixed gases, steam, cooling water, hot water, hot oil, petroleum, sulfuric acid, beverages, etc.

RQ5004005(4-in 4-out pneumatic slip ring)

The through hole diameter is 50 mm, suitable for the standard series of precision pneumatic slip rings with a diameter of <= 50 mm. 4 inlet 4 outlet air slip rings, M5" joints 4~6 mm pipe diameters.

The media that can pass through are: compressed air, hydrogen, nitrogen, chemical mixed gases, steam, cooling water, hot water, hot oil, petroleum, sulfuric acid, beverages, etc.

RQ5004003(4-in 4-out pneumatic slip ring)

The through hole diameter is 50 mm, suitable for the standard series of precision pneumatic slip rings with a diameter of <= 50 mm. 4 inlet 4 outlet air slip ring, G3/8" joint pipe diameters ranging from 10 to 12mm.

The media that can pass through are: compressed air, hydrogen, nitrogen, chemical mixed gases, steam, cooling water, hot water, hot oil, petroleum, sulfuric acid, beverages, etc.

RQ5004001(4-in 4-out pneumatic slip ring)

The through hole diameter is 50 mm, suitable for the standard series of precision pneumatic slip rings with a diameter of <= 50 mm. 4 inlet 4 outlet air slip ring, G1/8" joint pipe diameters of 6 to 8 mm.

The media that can pass through are: compressed air, hydrogen, nitrogen, chemical mixed gases, steam, cooling water, hot water, hot oil, petroleum, sulfuric acid, beverages, etc.

Since the establishment of the company, it has been focusing on providing customers with high quality slip ring products and solutions.
