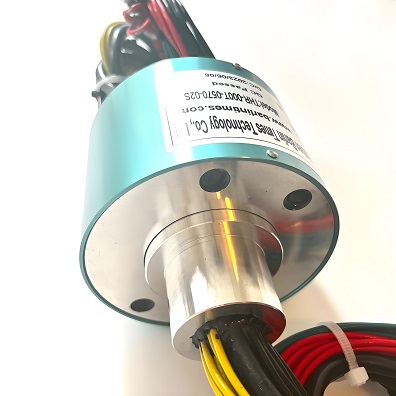

Shaft Slip Ring

In modern mechanical equipment, shaft components play a vital role, especially in situations where rotation and electrical signal transmission are required. Shaft Slip Rings are widely used in rotating devices as an important electrical connection component. By providing seamless transmission of current or signals, rotating equipment can maintain stable electrical connection while continuing to rotate.

This article will introduce the definition, working principle, structural composition, common applications and importance of shaft Slip Rings in detail, to help customers fully understand the functions, selection and maintenance points of shaft Slip Rings.

2. Definition and working principle of shaft Slip Rings

Shaft slip rings are electrical components that are mainly used to solve the problem of power and signal transmission between rotating equipment and stationary electrical systems. Usually, it consists of a fixed annular structure and a set of sliding brushes connected to the rotating shaft. When the equipment is running, the slip ring contacts the brushes on the rotating shaft through friction, thereby transmitting current or signals.

When the equipment starts to rotate, the contact point between the slip ring and the brush remains unchanged, ensuring stable transmission of current or signals. This technology is widely used in mechanical devices that require long-term operation and involve electrical signal or current transmission, such as motors, rotating machinery, radars, cranes, etc.

3. Structure and composition of shaft slip ring

The structure of shaft slip ring mainly consists of the following parts:

Stator: usually the stationary part, fixed on the outside of the equipment or on the bearing seat, used to connect the cable and provide power or signal to the rotor.

Rotor: connected to the rotating shaft, transmits current or signal through the friction of the slip ring. Usually made of metal material with high wear resistance.

Sliding brush: in contact with the rotating ring, maintains the transmission of current or signal through the friction between the brush and the slip ring. The material of the brush is generally copper or copper alloy, with good conductivity and wear resistance.

Brush holder: used to support the brush to ensure that the brush and the rotating ring maintain appropriate contact pressure, thereby achieving stable electrical transmission.

Bearing: supports the slip ring assembly to ensure that the rotating ring can rotate smoothly and reduce friction and wear.

4. Working principle of shaft slip ring

The working principle of shaft slip ring depends on the friction contact between the slip ring and the brush. When the current or signal flows to the fixed ring through the brush, the rotation of the rotating ring does not interrupt the electrical connection. This working principle allows the device to continue to operate without affecting the signal and power transmission.

Specifically, the fixed ring is connected to the external electrical system through a cable, and the brush contacts the rotating ring through the brush holder to transmit power or signals. As the device rotates, the rotating ring drives the brush to slide on its surface, but always maintains the continuity of electrical transmission.

5. Application areas of shaft slip rings

The application of shaft slip rings is very wide and covers many industries. Here are some typical application areas:

Industrial automation: In automation equipment, shaft slip rings are used to provide power and control signals to rotating motors. They are commonly used in automation equipment, rotating machinery, etc. in production lines.

Wind power generation: The generator set of a wind turbine needs to transmit power through a slip ring to ensure that power is transmitted from the rotor to the external power grid.

Lifting machinery: In equipment such as cranes and lifting platforms, shaft slip rings are used to ensure the transmission of power when the equipment rotates.

Radar and communication equipment: Radar systems and communication equipment need to maintain stable signal transmission during rotation, and shaft slip rings provide the necessary electrical connections for these devices.

Medical equipment: Some rotating medical equipment, such as CT scanners, also need to use shaft slip rings for signal transmission to ensure accurate image acquisition.

6. Advantages and challenges of shaft slip rings

Advantages:

Stability: Through the friction contact between the brush and the slip ring, the shaft slip ring can ensure the stable transmission of current and signals, and it is not easy to interrupt even in the case of high-speed rotation.

Strong adaptability: It can be applied to a variety of environments, including harsh industrial environments, high-speed rotating equipment, etc.

High transmission capacity: Modern shaft slip rings can transmit large currents and high-frequency signals to meet the needs of different types of mechanical equipment.

Easy maintenance: Due to its simple design and easy replacement of brushes, maintenance work is relatively simple.

Challenges:

Friction and wear: Although the shaft slip ring has been designed to minimize friction, friction and wear are inevitable in long-term operation, which may lead to a high frequency of brush replacement.

Electrical noise: Due to the existence of frictional contact, electrical noise interference may be caused, which may be a problem in some high-precision equipment.

Environmental adaptability: In extreme temperatures or corrosive environments, the service life of the shaft slip ring may be affected.

7. Selection and maintenance of shaft slip rings

Selection points:

Load current and voltage: Select the appropriate rated current and voltage specifications according to the power requirements of the equipment.

Rotation speed: The design of the shaft slip ring needs to adapt to the rotation speed of the equipment to ensure stable electrical connection.

Durability: Select materials with high wear resistance and corrosion resistance according to the working environment of the equipment.

Transmission signal type: If the equipment needs to transmit signals (such as high-frequency signals), it is necessary to select shaft slip rings that support signal transmission.

Maintenance points:

Regularly check the wear of the brushes and replace the brushes if necessary.

Regularly check the surface wear of the slip ring to ensure that the friction coefficient is within a reasonable range.

Keep the slip ring and brush clean to avoid dust or oil from affecting the transmission effect.

For high-frequency signal transmission equipment, regularly check the signal stability to ensure that there is no interference.

As an indispensable electrical connection component in mechanical equipment, shaft slip rings play an important role in many industrial fields. Through in-depth understanding of its working principle, structural composition, application field, selection and maintenance, customers can better choose suitable shaft slip rings and ensure the long-term stable operation of the equipment. With the development of technology, shaft slip rings have shown strong application potential in more and more fields, promoting the innovation and progress of equipment in various industries.
