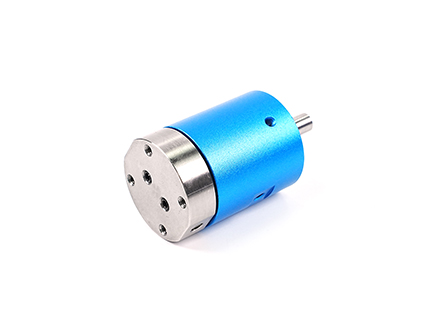

How Do You Install An Air Slip Ring Correctly?

Installing an Air Slip Ring correctly is essential to ensure stable performance, prevent air leakage, and extend the service life of industrial rotating systems. Air Slip Rings are widely used in automation equipment, packaging machinery, robotics, and rotary platforms where continuous air transfer is required during rotation.

Before installation, make sure the system is completely shut down and depressurized. A Pneumatic Slip Ring must be handled carefully to avoid damage to internal seals and channels. Always check the technical specifications, including pressure rating, rotation speed, and port configuration, to ensure compatibility with your equipment.

When installing a gas slip ring, proper alignment is critical. Misalignment can cause uneven wear and air leakage. Mount the unit securely on the rotating shaft or fixed bracket according to the manufacturer’s instructions. Use appropriate sealing materials to ensure airtight connections at all inlet and outlet ports.

An air rotary union should be connected using clean, dry air lines to prevent contamination inside the system. Any dust or moisture can reduce sealing performance and shorten the lifespan of the unit. It is also recommended to install filters and pressure regulators before operation to maintain stable airflow.

During assembly of a rotary air joint, ensure that the rotating and stationary parts are properly fixed without excessive force. Over-tightening can damage seals, while loose installation may lead to vibration and air leakage. After installation, manually rotate the system to confirm smooth movement before powering it on.

Finally, conduct a pressure test to verify that the air slip ring system operates without leakage. Regular maintenance checks will help ensure long-term reliability and consistent performance in industrial applications.

In conclusion, correctly installing an air slip ring, Pneumatic Slip Ring, or gas slip ring requires careful alignment, clean air supply, and proper sealing. Whether used as an air rotary union or rotary air joint, following correct installation procedures ensures efficient operation and extends equipment lifespan.
