How To Install A Compact Cap Slide Correctly

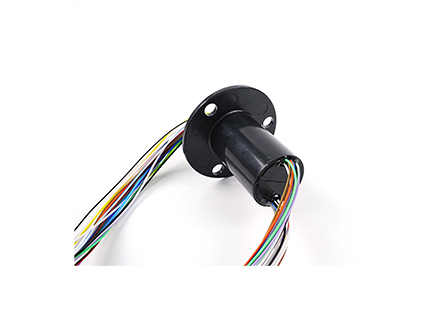

A Compact Cap Shaped Slip Ring is designed for equipment that needs continuous rotation in a limited space.Industry product pages describe this type of Cap Shaped Slip Ring as a compact,small-sized design with a circular flange that is easy to install,which is why it is often selected for cameras,automation devices,and other rotating systems with tight layouts.

To install a Compact Slip Ring correctly,first confirm that the model,circuit count,voltage,current,and flange dimensions match your equipment.A good fit between the mounting holes and the installation surface helps the unit stay stable during operation.Before powering anything on,inspect the body and wires to make sure there is no shipping damage,dirt,or contamination.

Next,mount the Mini Slip Ring firmly and keep the rotating and stationary sides aligned.Installation guidance from slip ring manufacturers warns against placing axial,radial,or side loads on the unit,because extra mechanical stress can reduce performance and service life.Wiring should also be routed carefully.Secure the leads so they do not rub against nearby parts,twist excessively,or pull on the housing during rotation.

Finally,protect the Small Slip Ring from dust and moisture unless it is specifically designed for harsh environments.A clean installation area,stable mounting,and proper cable management will help a Compact Cap Shaped Slip Ring deliver smoother signal transmission,lower wear,and more reliable long-term operation.
