CB022 is a standard cap-shaped slip ring with gold-gold contact points, ensuring stability and service life. It is mainly used in civil and commercial fields.
Ultra-thick gold plating treatment, fully imported bearings, rare metal alloy brush wires, mainly used in military, defense and other non-civilian fields.
CB: Cap Slip Rings Series Designator
022: 0-inner diameter 0mm; 22-outer diameter 22mm
Number of Current paths:
0610:06 represents 6 channels, 10 represents each channel can pass 10A current
1230:12 represents 12 channels, 30 represents each channel can pass 30A current
Number of signal paths:
06S:06 stands for Channel 6, and S stands for signal line
12S:12 represents 12 channels and S represents the signal line
Product Grade Code:
C: General grade, default is general grade
D: Industrial Grade
H: Highest grade
CB022 is a standard cap-shaped slip ring with gold-gold contact points, ensuring stability and service life. It is mainly used in civil and commercial fields.
Ultra-thick gold plating treatment, fully imported bearings, rare metal alloy brush wires, mainly used in military, defense and other non-civilian fields.

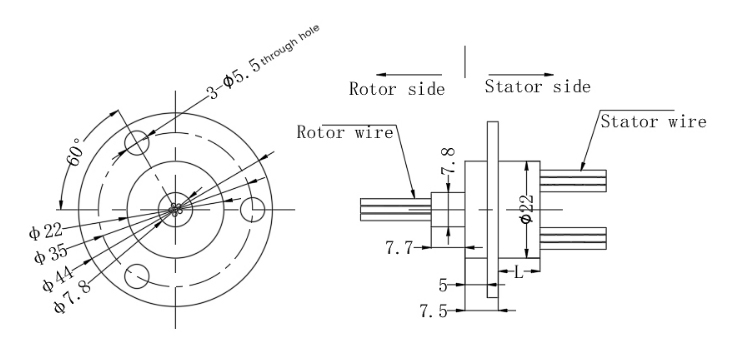

| Model | 10A | Signal or 0-2A | Length | Total number of routes |
| CB022-06S | 0 | 6 | 9.5 | 6 |
| CB022-12S | 0 | 12 | 17 | 12 |
| CB022-18S | 0 | 18 | 24.4 | 18 |
| CB022-24S | 0 | 12 | 32.1 | 24 |
| CB022-36S | 0 | 36 | 47 | 36 |
| Mechanical technical indicators | Electrical technical specifications | |||
| Parameters | Numerical value | Parameters | Numerical value | |
| Working life | ≥15 million revolutions | Power | Signal | |
| Rated rotational speed | 1-250prm | Rated voltage | 220VAC/VDC | 220VAC/VDC |
| Working temperature | - 30 ℃ ~ 80 ℃ | Insulation resistance | 300 m Ω / @ 300 VDC | 300 m Ω / @ 300 VDC |
| Working humidity | 0~85% RH | Wire specification | AWG#26 | AWG#26 |
| Contact material | See the product grade table | Wire length | Standard length: 300mm (adjustable as required) | |
| Shell material | Engineering plastic | Insulation strength | 300VAC@50Hz, 60s | |
| Rotational torque | 0.1N.m+0.03N.m/6 channels | Dynamic resistance change value | < 0.01 Ω | |
| Protection grade | IP51 | |||
| Model | Maximum rotational speed | Product lifespan | Torque | Shell material | Electrical noise ①@10Rpm |
| CB022 | 250RPM | ≥20 million | 0.02 N·m | Engineering plastic | 10 m Ω |
| Loop road | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| Colour | red | green | yellow | The purple | grey | black | blue | Deep blue | brown | orange | white | Earthy yellow |
| Loop road | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 |
| Colour | White and red | White and black | White and blue | White and purple | White and brown | White and green | White and orange | White and yellow | White and lime | Black and red | Black and blue | Yellow-green |
Optional connectors and heat shrink tubes are available
Wire length
In a high-temperature environment
Military grade
